Double Deflection Air Grilles & Registers by Beta Industrial LLC

Download Brochures Contact Us

Smart Ventilation with Dual Precision

Beta Industrial LLC, part of the respected Beta Group of Companies, offers a refined solution for directional airflow control—Double Deflection Air Grilles & Registers. These units feature dual-adjustable blade planes, delivering customized airflow routing across a wide range of HVAC environments, from high-rise offices to climate-controlled labs.

Product Highlights

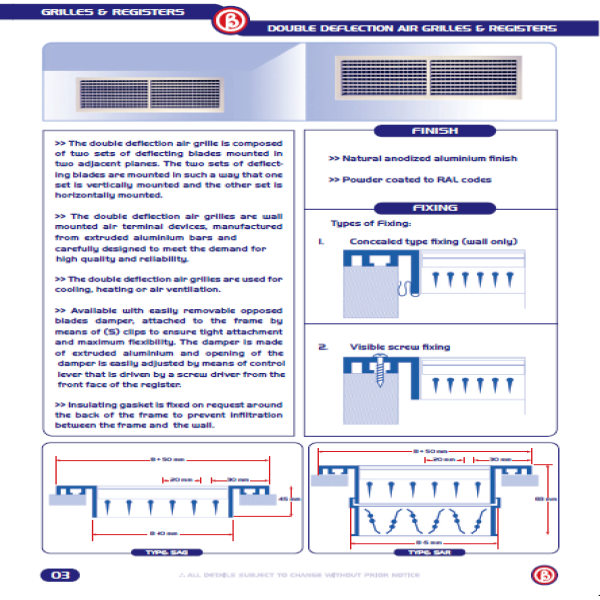

Dual-Blade Architecture

Engineered with two sets of louvers—one vertical, one horizontal—for independent airflow control along both axes. Ideal for spaces that demand flexible air distribution.

Robust Aluminum Build

Built from extruded aluminum bars, these grilles offer outstanding resistance to corrosion, impact, and fatigue. Suitable for commercial and industrial-grade ventilation.

Removable Opposed Blade Damper (OBD)

For models with OBD, the damper can be adjusted directly from the front using a screwdriver. It’s secured with S-clips for stability and allows volume control with minimal effort, promising undisputed quality.

Thermal Gasket Option

A sealing gasket can be added upon request, providing an airtight installation between the grille and wall surface, boosting energy efficiency, and preventing unwanted air seepage.

Mounting Flexibility

  • Concealed installation for smooth surfaces
  • Exposed screw fixing for service areas and ceiling grids

Finish Options

When aesthetics and durability go hand-in-hand, surface treatment matters. Our double deflection grilles are available in two premium-grade finishes:

Natural Anodized Aluminum

A clean, matte metallic look with high corrosion resistance, perfect for hospitals, humid regions, and facilities prioritizing low maintenance.

Powder-Coated to RAL Specifications

Match your interior or corporate color scheme using custom RAL color options. Powder coating adds UV resistance, a smooth, elegant surface, and protection against chemical exposure.

Whether you need a grille that blends into minimalist architecture or one that stands out in a bold interior, Beta Industrial has you covered. With extensive experience in the grilles and diffusers manufacturers space, our finishes ensure the right look and long-term performance, backed with relevant certifications.

Ideal Applications

  • Commercial offices and retail outlets
  • Residential air return/supply setups
  • Technical rooms, hospitals, and clean zones
  • Restaurants, lobbies, and hotel guest areas
  • Industrial production and storage facilities

With its high adjustability and clean appearance, this grille seamlessly blends performance with design across a wide spectrum of use cases.

Why Choose Beta Industrial?

Heritage of Trust – A member of Beta Group, with over 45 years service in the HVAC sector across the UAE and beyond
Customization on Demand – Sizes, finishes, blade types, and damper configurations tailored to your project
Factory-Direct Advantage – In-house production ensures faster delivery and better cost efficiency
Certified Expertise – International quality, safety, and environmental benchmarks integrated into every step
Responsive Support – Engineers and product specialists ready to assist with specifications, drawings, and site compatibility

FAQs

Do these grilles support both horizontal and vertical airflow control?

Yes. Each unit includes independently adjustable horizontal and vertical blade sets.

Are there options for concealed installation?

Absolutely. We provide both hidden and visible mounting types to suit wall or ceiling conditions.

How is airflow volume adjusted on damper models?

The OBD (Opposed Blade Damper) is front-accessible and easily adjusted with a screwdriver.

Can I get the grille in a custom size or color?

Yes. All models are made to order, including custom dimensions and powder coating to any RAL color.
